What Is a Virtual IP Address (VIP) and How Does It Work in Networking?

A Virtual IP address (VIP or VIPA), also called a floating or shared IP, is an IP address that isn’t permanently tied to a specific physical device. Unlike a standard IP address assigned to a single network interface card (NIC), a VIP acts as a logical address that can move between servers or network interfaces.

VIPs are widely used in both on-premises and cloud environments to manage traffic efficiently. They serve as a single entry point for incoming requests, allowing systems to distribute traffic across multiple servers. This helps improve load balancing, optimize resource use, and ensure high availability without requiring each server to have its own public IP address.

What Is the Difference Between IP and Virtual IP?

A regular IP address is tied to a specific piece of hardware, such as a network interface on a server. If that device goes offline or fails, the IP address becomes unavailable, which can interrupt connections and services.

A virtual IP (VIP) works differently. It isn’t fixed to a single device. Instead, it acts as a flexible address that can move between servers as needed. If one server fails, the VIP automatically shifts to another, helping maintain uninterrupted service without manual changes.

In addition, a single virtual IP can represent multiple servers at once, distributing incoming traffic across them. This improves performance, prevents overload, and supports better reliability.

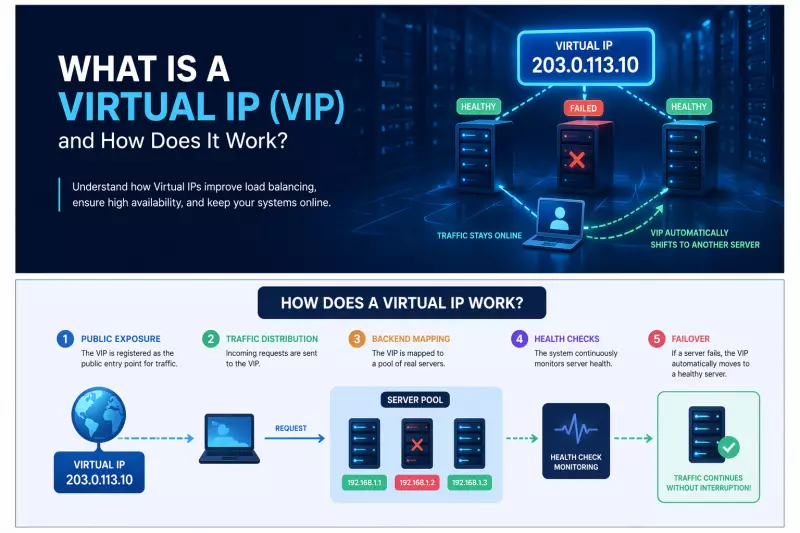

How Does a VIP Work?

A virtual IP reroutes network traffic to alternative resources or servers, ensuring continued service when hardware fails. The operation process typically follows these steps:

• Public Exposure: The VIP is registered with a router or a cloud load balancer, serving as the public entry point for traffic.
• Traffic Distribution: When a client sends a request to the VIP, the system uses the VIP to distribute the associated traffic.
• Backend Mapping: The VIP is mapped to a pool of real servers or instances. These backend servers have their private IP addresses.
• Health Checks: The load balancer or router continuously checks the health of these backend servers. If a server fails, the system automatically stops sending traffic to it.
• Failover: If the primary server hosting the VIP goes offline, the VIP is immediately moved or floated to a secondary standby server. This process is facilitated by protocols such as Virtual Router Redundancy Protocol (VRRP) or cloud-native ARP (Address Resolution Protocol), ensuring near-zero downtime.

What Are the Benefits of Using a Virtual IP?

VIPs have the following advantages over physical IPs:

• High Availability: VIPs eliminate single points of failure. If a server crashes or a network interface fails, the VIP shifts to a redundant node. Hence, there is no disruption to the end-user experience, as the IP address they connect to remains the same.
• Seamless Load Balancing: VIPs act as the front end for load balancers such as HAProxy, NGINX, or cloud-native load balancers. They allow you to distribute high volumes of traffic across multiple backend instances, preventing any single server from becoming overburdened.
• Simplified Maintenance:Since the VIP abstracts the physical hardware, administrators can take individual servers offline for patches or upgrades without impacting availability. Traffic is rerouted to other healthy nodes during maintenance windows.
• Multi-Service Hosting: A single VIP can host multiple services. For instance, a VIP can route requests for:
  • domain.com:443 (HTTPS) to a web server cluster
  • domain.com:21 (FTP) to a file server
  • domain.com:25 (SMTP) to a mail server

The routing is determined by the destination port number, allowing efficient use of IP address space.

• Cloud-Native Flexibility: In cloud environments, VIPs, often called Elastic IPs or Floating IPs, enable portability. They can be remapped to different instances instantly, allowing you to resize or replace infrastructure without reconfiguring DNS records.

How Do I Find a Virtual IP Address?

Depending on whether you are working on a local machine or in a cloud environment, you can find your virtual IP address in the following ways:

On Windows

• Open Command Prompt by pressing Windows + R or by typing “cmd” and pressing the Enter button.
• Type “ipconfig” and press the Enter button.
• Review the output to find all network interfaces, including any virtual IP addresses associated with your system. You will see both IPv4 and IPv6 addresses listed for each adapter, including the VIP if configured.

On Linux/macOS

• Run “ip addr show” (Linux) or ifconfig (macOS). VIPs typically appear as aliased addresses or as secondary addresses in the output.

Cloud Environments

• In modern cloud infrastructure, VIPs are rarely visible via local commands. You must check your cloud console under “load balancers” or “elastic/reserved IPs” to find the virtual address managing your traffic.

How to Add a Virtual IP Address?

The method for adding a virtual IP address depends on the environment. In a cloud architecture, VIPs are often added via a load balancer rather than being configured manually in the operating system.

However, for local/on-premises systems using the Windows operating system:

• Open Control Panel>Network and Sharing Center>Change adapter settings
• Right-click your active network adapter and select Properties
• Select Internet Protocol Version 4 (TCP/IPv4) and click Properties
• Click Advanced
• Under IP addresses, click add
• Enter the virtual IP address and subnet mask, then click Add and save

In production environments, it is recommended to use a dedicated load balancer, such as a cloud-native service or HAProxy, to manage the VIP across a cluster.
